(Pack of 2) 2 Pin 5mm Pitch Screw Terminal 126 Series

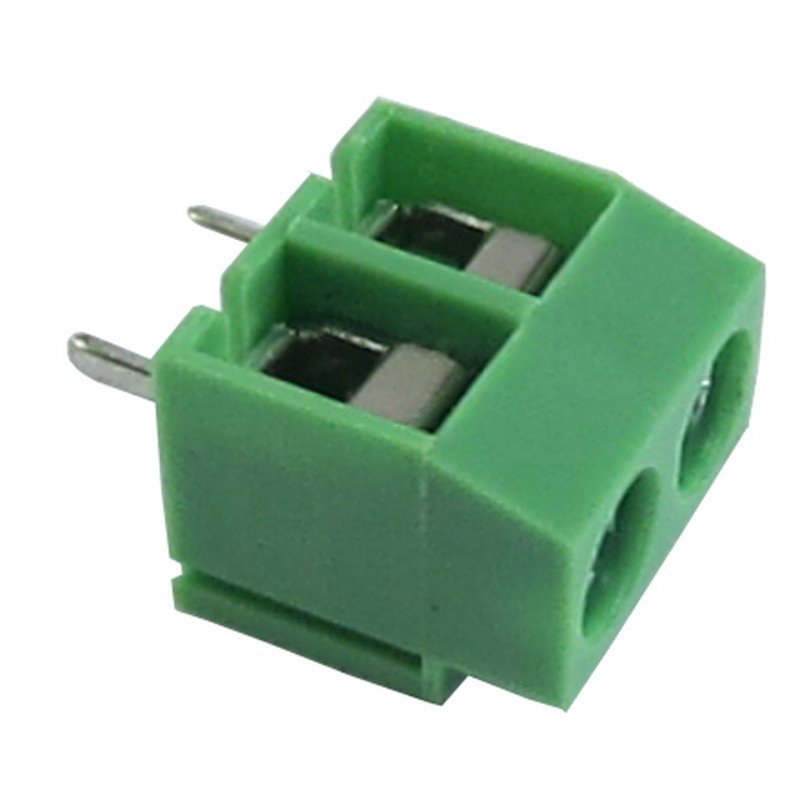

(Pack of 2) 2 Pin 5mm Pitch Screw Terminal 126 SeriesThis terminal block features two wire entry points that use a screw clamp mechanism to hold the wire securely in place. The screws, when tightened, lower a metal plate that grips the conductor firmly, preventing accidental wire pullout and ensuring low-resistance electrical contact.The 5mm pitch spacing between terminals is standardized, allowing it to fit perfectly on a variety of PCBs and prototyping boards. It supports both solid and stranded wires, with cross-sections ranging from 0.5 mm² to 2.5 mm² (22–14 AWG).The connector body is constructed from PA66 flame-retardant nylon, which provides excellent insulation, mechanical strength, and resistance to heat and chemicals. The metal contacts are nickel-plated brass, ensuring high conductivity, corrosion resistance, and durability even under repeated use or in humid environments.The 126 Series modular design allows multiple terminal blocks to be daisy-chained or interlocked side-by-side, forming larger configurations such as 3-pin, 4-pin, or 6-pin connectors depending on circuit requirements. This flexibility makes it perfect for both prototype development and mass production PCBs.Click here to view the related productsSpecifications :-ConnectorPCB Terminal BlockTerminationScrewNo. of Contacts2Allowed Wire Size (AWG)22 ~ 22Voltage(V)300Operating Current (A)10Mounting TypeThrough HolePin Spacing (mm)5ApplicationsArduino, Raspberry Pi, and other microcontroller projectsPower supply modules and control circuitsLED lighting controllersAudio and amplifier systemsIndustrial automation and instrumentationRobotics and prototype development boardsAdvantagesSolderless, reusable terminal connectionVibration-resistant and secure wire holdingStackable modular design for custom configurationsHigh electrical reliability for both AC and DC systemsEasy installation and maintenance*Product image for illustration purposes only, actual product may vary.
