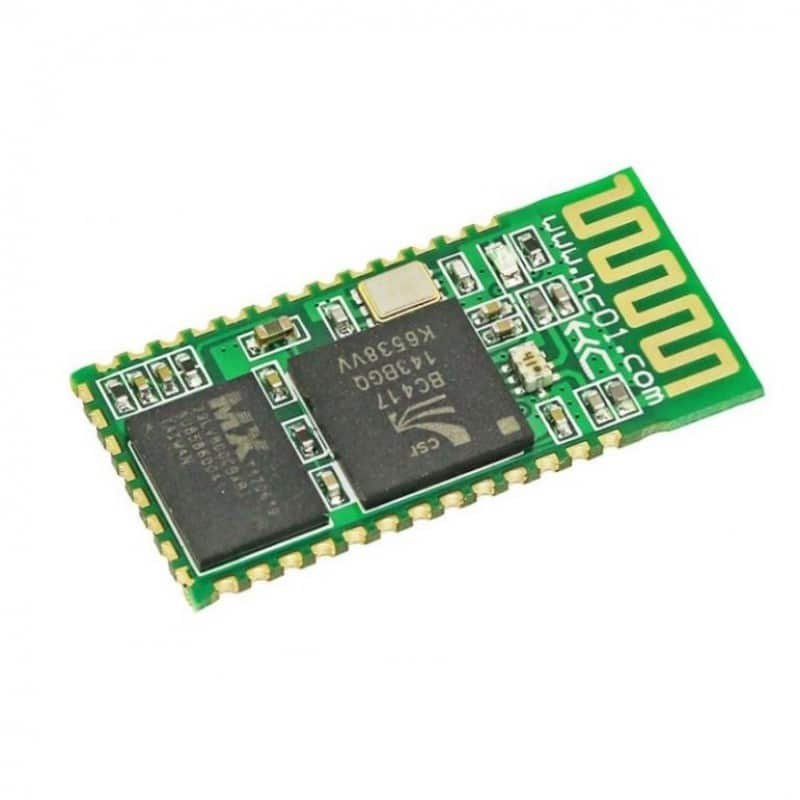

HC 06 Wireless Bluetooth Module without Baseplate
Roll over image to zoom in
$ 91.37
HC 06 Wireless Bluetooth Module without BaseplateThe HC-06 module provides wireless serial communication (UART) between microcontrollers and Bluetooth-enabled devices. It acts as a bridge to replace traditional wired serial connections, eliminating bulky cables and improving system flexibility.The onboard CSR BC417143 chipset ensures stable performance, fast pairing, and reliable data transmission over distances up to 10 meters in open space. The module’s built-in PCB antenna offers good signal strength and range while maintaining a slim, lightweight form factor.Designed for plug-and-play use, the HC-06 works seamlessly with popular microcontroller platforms like Arduino, ESP8266, ESP32, STM32, AVR, and Raspberry Pi. It uses TTL-level serial communication, so you can directly connect the TX and RX pins to your MCU (with voltage level adjustment for 5V systems).The AT command interface allows easy customization of key parameters such as device name, baud rate, and pairing password, giving developers full control over configuration and communication behavior.Click here to view the related productsFeatures:-Works with any USB Bluetooth adapters.Default Baud Rate: 9600,8,1,n.Built-in antenna.Coverage up to 30ft.specifications:-ModelHC-06 (without Baseplate)Operating Voltage3.3VOperating Current40mABluetooth versionV2.0 EDRDefault Baud Rate9600,8,1,n.Signal coverage30ftOperating temperature range-20C to 55CLength (mm)27Width (mm)13.20Height (mm)2ApplicationsWireless serial communication with Arduino or microcontrollersBluetooth-enabled robots and automation systemsWireless sensor data transmissionPC or smartphone to MCU serial interfaceIoT device communicationAdvantagesCompact module without baseplate — easy integration into embedded designs.Low power consumption and stable connectivity.Plug-and-play UART communication — no driver required on most devices.Supports Serial Port Profile (SPP) for seamless data transfer with Android/Windows devices.*Product image for illustration purposes only, actual product may vary.
