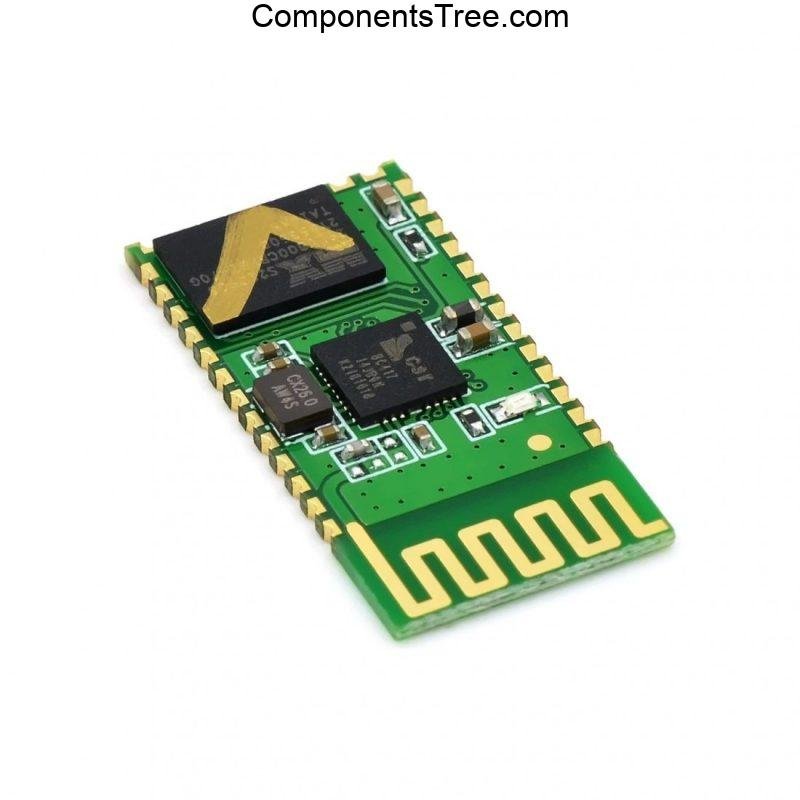

HC 05 Wireless Bluetooth Module without Base Plate

HC 05 Wireless Bluetooth Module without Base Plate The HC-05 Wireless Bluetooth Module is a powerful and flexible Bluetooth Serial Communication module that supports both Master and Slave modes. It enables wireless serial communication between microcontrollers, PCs, and mobile devices over Bluetooth 2.0 EDR.This version comes without a base plate, making it ideal for embedding directly into electronic circuits or compact PCB designs. Its versatility and reliability make it one of the most widely used Bluetooth modules for Arduino, Raspberry Pi, and other embedded platforms.Click here to view the related productsFeatures:-Working current: matching for 30 mA, matching the communication for 8 mA.Dormancy current: no dormancy.Used for a GPS navigation system, water, and electricity gas meter reading system.With the computer and Bluetooth adapter, PDA, seamless connection equipment.Bluetooth module HC-08 Master and slave Two in one module.Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.Potter default rate of 9600, the user can be set up.Bluetooth protocol: Bluetooth Specification v2.0 EDRSpeed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.Security: Authentication and encryption.Profiles: Bluetooth serial port.specifications:-Input Supply voltage (V)3.6 ~ 6Input current (mA)50Maximum Operating Range (m)10Operating Frequency2.4GHz ISM bandModulationGFSK (Gaussian Frequency Shift Keying)Emission power4dBm, Class 2Sensitivity-84dBm at 0.1% BEROperating Temperature ()-20 ~ 75Length (mm)26.85Width (mm)13.13Height (mm)1.9ApplicationsWireless serial communication with Arduino or microcontrollersBluetooth-based robots and control systemsIoT (Internet of Things) devicesWireless sensor data transferHome automation and remote monitoringSerial data transmission between two Bluetooth devices*Product image for illustration purposes only, actual product may vary.
