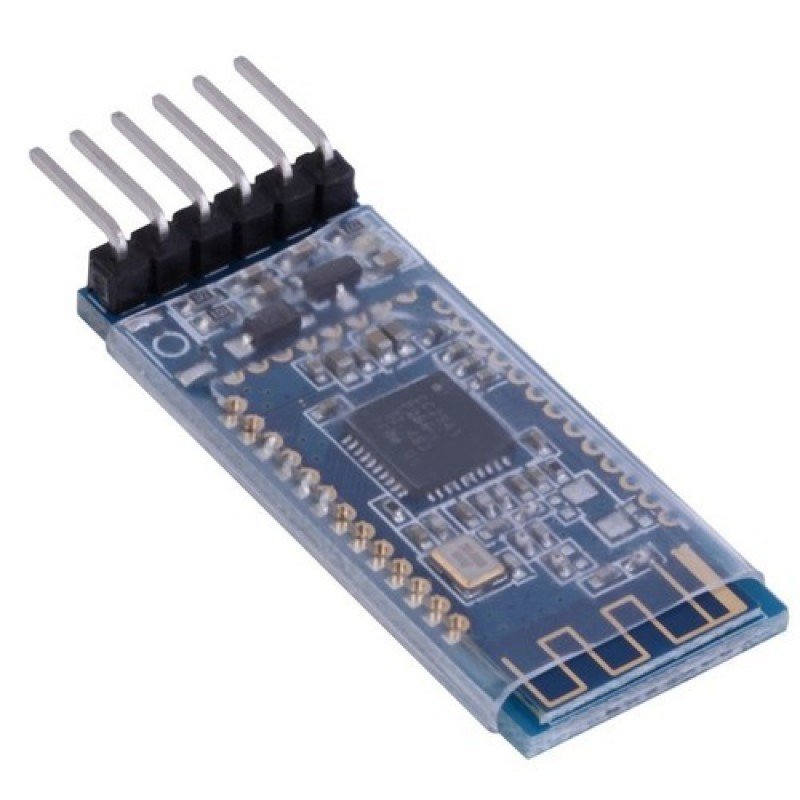

HM 10 Bluetooth Module
Roll over image to zoom in
$ 2.40
HM 10 Bluetooth ModuleThe HM-10 module provides a simple UART interface, allowing seamless wireless communication between devices.It is fully compatible with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V logic systems through its TTL serial interface.Using AT commands, users can easily configure parameters such as the module name, baud rate, transmission power, and operation mode (Master/Slave).This module can communicate directly with BLE-enabled smartphones or tablets without needing a custom driver, which makes it perfect for Bluetooth app-controlled projects.Click here to view the related productsFeatures :-BT Version: Bluetooth Specification V4.0 BLESend and receive no bytes limit.Working frequency: 2.4GHz ISM bandModulation method: GFSK(Gaussian Frequency Shift Keying)RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT POWE.Speed: Asynchronous: 6K BytesSynchronous: 6K BytesSecurity: Authentication and encryptionService: Central & Peripheral UUID FFE0,FFE1Power: 3.3VDC 50mALong range: Open space have 100 Meters with iphone4sPower: In sleep mode 400uA~1 .5mA, Active mode 8.5mA.Working temperature:–5 ~ 65 CentigradeSize: HM-10 26.9mm x 1 3mm x 2.2 mm.ApplicationsInternet of Things (IoT) devicesHome automation systemsSmart health and fitness gadgetsWireless sensors and data loggersBluetooth-controlled robotsCommunication between microcontrollers and mobile appsAdvantagesEnergy-efficient BLE communicationLong-range and stable connectionSupports both Android and iOS devicesCompact and easy to integrateIdeal for modern wireless applications*Product image for illustration purposes only, actual product may vary.
