PAM8610 Digital Stereo Class-D Amplifier Module 2x15W Output

$ 1.19

Categories: , ,

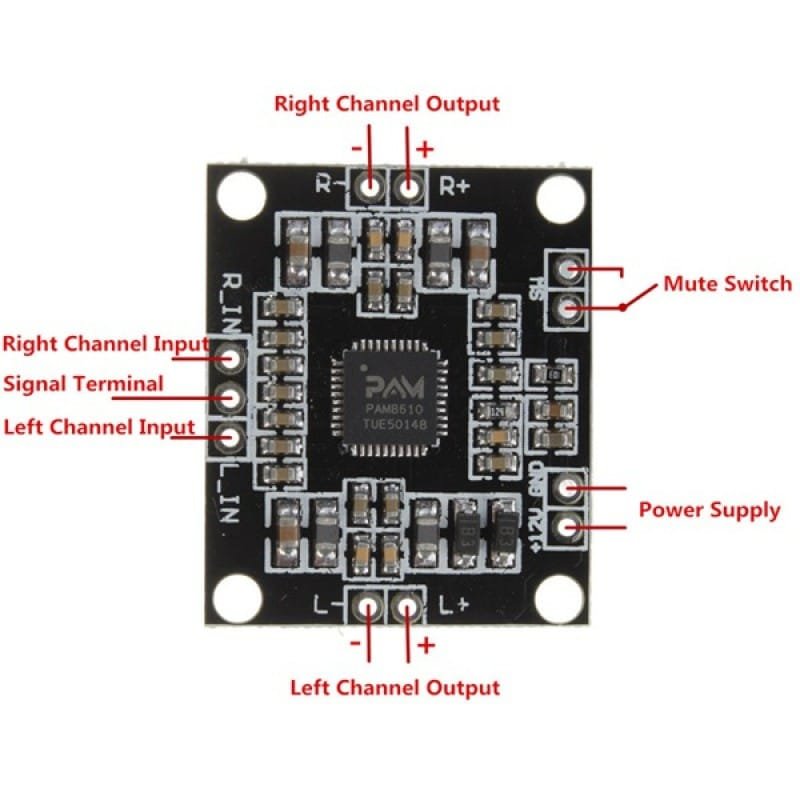

PAM8610 Digital Stereo Class-D Amplifier Module 2x15W Output.The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a 32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors ICs.The PAM8610 amplifier only requires very few external components, significantly saving cost and board space. This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40 pin QFN 6 x 6 mm package.How to use:-The power supply voltage limit is 16.5V, do not use more than this voltage.The power supply is recommended for 12v, 3A power supply filter better.4-8 inch stereo speakers recommended.Do not short-circuit the audio output to each other or shorted to ground.Carefully check before electricity, ensure the wiring is correct before electricity.Features :-This plate with a switching function, SW short, will turn off the power amplifier.Working Mode: Class D (PWM modulation type).specifications:-ModelPAM 8610Input Voltage (V)7 ~ 15Working ModeClass D (PWM modulation type)Power (W)15Length (mm)30.5Width (mm)25.5Height (mm)2.6Weight (gm)5*product image for illustration purposes only. actual product may vary.
