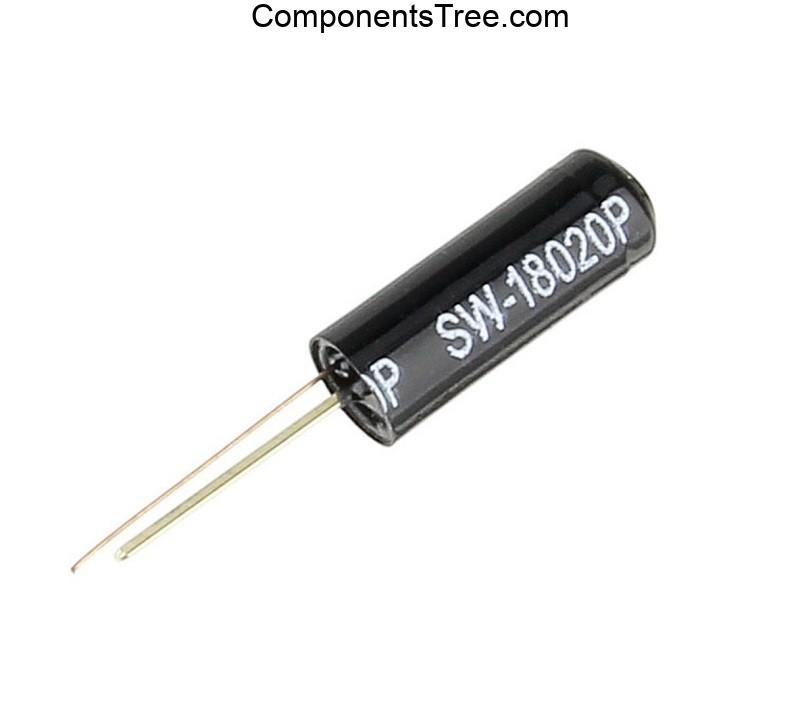

SW-18020P Sealed Vibration Switch/Shaking Vibration Sensor Switch

SW-18020P – Sealed Vibration Switch, Shaking Vibration Sensor SwitchVibration sensor SW-18020 is a piezoelectric accelerometer that senses vibration. It is a switch that reacts (connects) to vibration, ie. moves. When a force acts on the sensor, it is connected, and when the force does not work, it is not connected. This product is known as 2801 ball sensor, SW-520D, SW-520D Vibration Sensor, SW18020P, SW-18020P, SW-18020 Vibration Sensor, Tilt Sensor, and SW-18020 Vibration Sensor.Specifications:Part Number: SW-18020PMax Voltage: 12VMax Current: 50mAConductive Time: ~2msClosed Resistance: < 10 ohmOpen Resistance: > 10M ohmOperating Temperature Range: -40°C ~ 80°CPull Force of Terminal: 500gf for 1 minOperating Lifespan: up to 200,000 cyclesLength: 11 mmDiameter: 4.4 mLength including Pin: 21.5mmApprox Weight: 2 gmApplication:Security devicesToysElectronic scalesSW-18020P Datasheetproduct image for illustration purposes only. actual product may vary.
