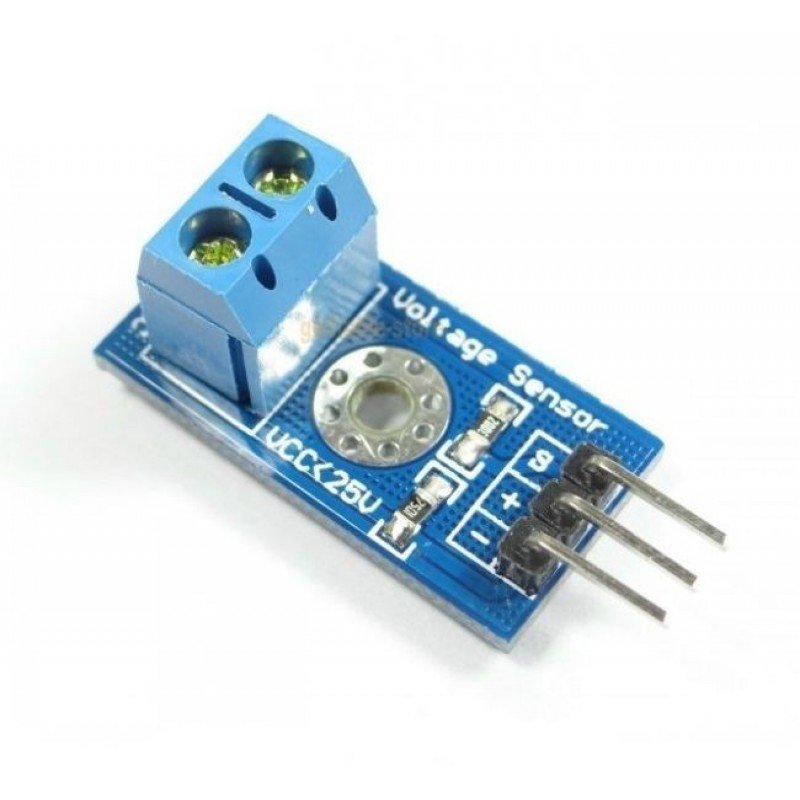

Voltage Detection Sensor Module 25V

$ 0.22

Categories: , ,
Voltage Detection Sensor Module 25V.Voltage Sensor is a precise low cost sensor for measuring voltage. It is based on principle of resistive voltage divider design. It can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5V, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.Features:-Voltage input range: DC 0-25VVoltage detection range: DC 0.02445V-25VVoltage Analog Resolution: 0.00489VDC input connector: Terminal cathode connected to VCC, GND negative poleOutput interface: connect 5/3.3V, – connect GND, s connect the Arduino AD pins*product image for illustration purposes only. actual product may vary.
