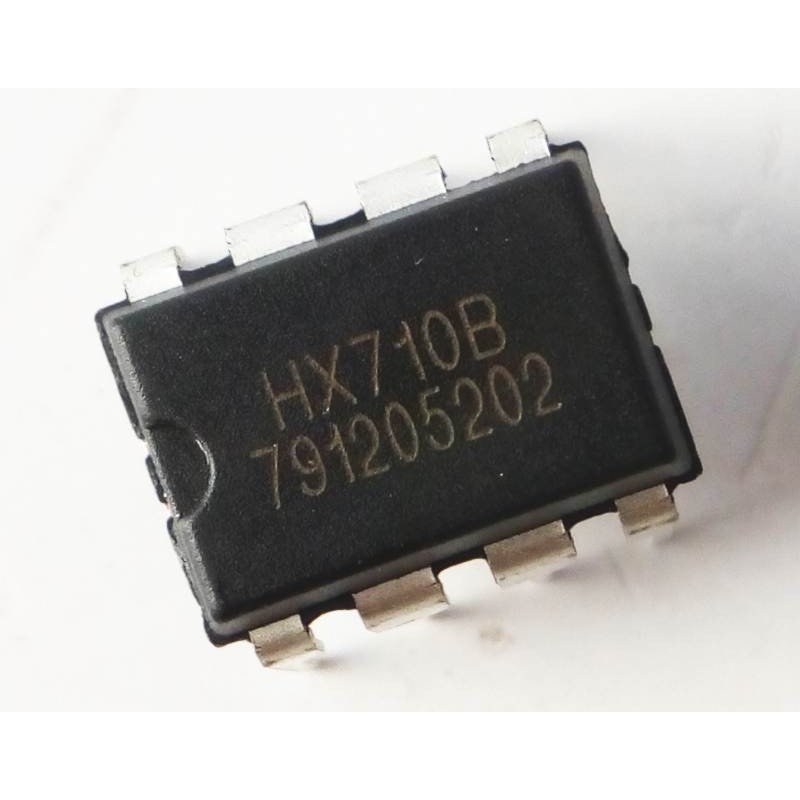

HX710B Weighing Scale 24-Bit Analog to Digital Convertor (ADC) IC DIP-8 Package
Roll over image to zoom in
$ 18.48
The HX710B is a precision 24-bit analog-to-digital converter (ADC) with built-in temperature sensor designed for weigh scales and industrial control applications to interface directly with a bridge sensor. The input low-noise amplifier (PGA) has a fixed gain of 128, corresponding to a full-scale differential input voltage of ±20mV, when a 5V reference voltage is connected to the VREF pin. On chip oscillator provides the system clock without any external component. On-chip power-on-reset circuitry simplifies digital interface initialization. There is no programming needed for the internal registers. All controls to the HX710B are through the pins.Features:-• On-chip temperature measurement• On-chip active low noise amplifier with a gain of 128• On-chip oscillator requiring no external component• On-chip power-on-reset• Simple digital control and serial interface: pin-driven controls, no programming needed• Selectable 10SPS or 40SPS output data rate• Simultaneous 50 and 60Hz supply rejection• Current consumption: normal operation < 1.2mA, power down < 1uA• Operation supply voltage range: 2.6 ~ 5.5V• Operation temperature range: -40 ~ 85?• 8 pin SOP-8 or DIP-8 packageSpecifications:- SymbolParameterMinTypeMaxUnitT1DOUT falling edge to PD_SCK rising edge0.1µsT2PD_SCK rising edge to DOUT data ready0.1µsT3PD_SCK high time0.2150µsT4PD_SCK low time0.21µshx710b-ic-dip-datasheet* product image for illustration purposes only. actual product may vary.
