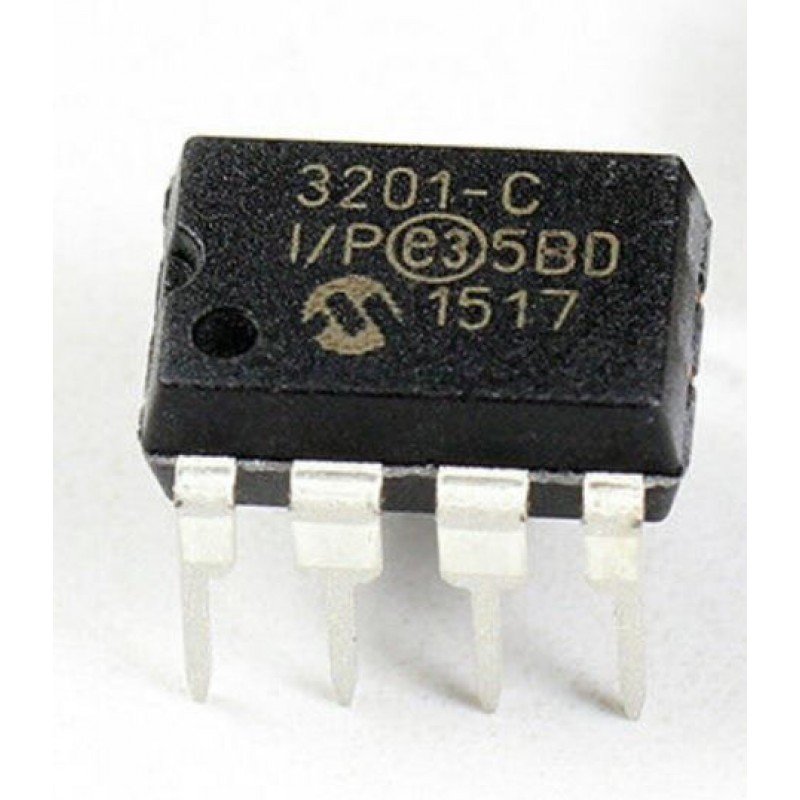

MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC DIP-8 Package

The Microchip Technology Inc. MCP3201 is a successive approximation 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) versions. Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100 ksps at a clock rate of 1.6 MHz. The MCP3201 operates over a broad voltage range (2.7V – 5.5V). Low current design permits operation with typical standby and active currents of only 500 nA and 300 µA, respectively. The device is offered in 8-pin MSOP, PDIP, TSSOP and 150 mil SOIC packages.Features:-• 12-bit resolution• ±1 LSB max DNL• ±1 LSB max INL (MCP3201-B)• ±2 LSB max INL (MCP3201-C)• On-chip sample and hold• SPI™ serial interface (modes 0,0 and 1,1)• Single supply operation: 2.7V – 5.5V• 100ksps max. sampling rate at VDD = 5V• 50ksps max. sampling rate at VDD = 2.7V• Low power CMOS technology• 500 nA typical standby current, 2 µA max.• 400 µA max. active current at 5V• Industrial temp range: -40°C to 85°C• 8-pin MSOP, PDIP, SOIC and TSSOP packagesSpecifications:- ParametersSpecificationVDD7.0VAll Inputs and Outputs w.r.t. VSS-0.6V to VDD 0.6VStorage Temperature-65°C to 150°CAmbient temperature with power applied–65°C to 125°CSoldering temperature of leads (10 seconds) 300°CESD Protection On All Pins (HBM)? 4 Kvmcp3201-ic-datasheet* product image for illustration purposes only. actual product may vary.
