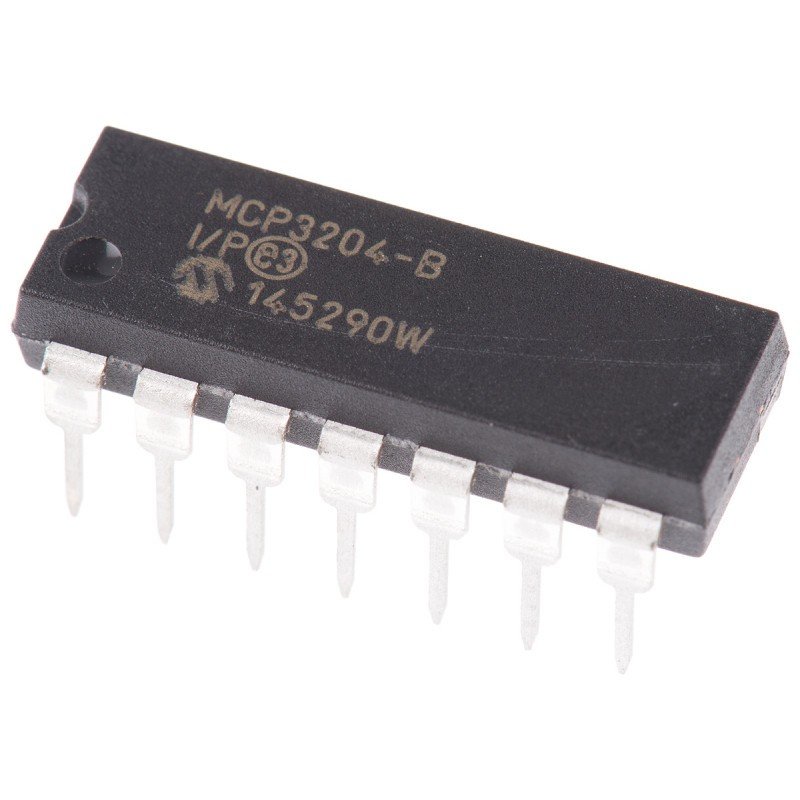

MCP3204 12-Bit 4-Channel A/D Converter (ADC) with SPI Interface IC DIP-14 Package
Roll over image to zoom in
$ 3.14
MCP3204 devices are successive approximation 12-bit Analogto-Digital (A/D) Converters with on-board sample and hold circuitry. The MCP3204 is programmable to provide two pseudo-differential input pairs or four singleended inputs. Differential Nonlinearity (DNL) is specified at ±1 LSB, while Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3204-B) and ±2 LSB (MCP3204-C) versions. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 100 ksps. The MCP3204 devices operate over a broad voltage range (2.7V – 5.5V). Low current design permits operation with typical standby and active currents of only 500 nA and 320 µA, respectively. The MCP3204 is offered in 14-pin PDIP, 150 mil SOIC and TSSOP packages.Specifications:- ParametersSpecificationVDD7.0VAll Inputs and Outputs w.r.t. VSS-0.6V to VDD 0.6VStorage Temperature-65°C to 150°CAmbient temperature with power applied–65°C to 125°CSoldering temperature of leads (10 seconds) 300°CESD Protection On All Pins (HBM)? 4 Kvmcp3204-ic-datasheet*product image for illustration purposes only. actual product may vary.
