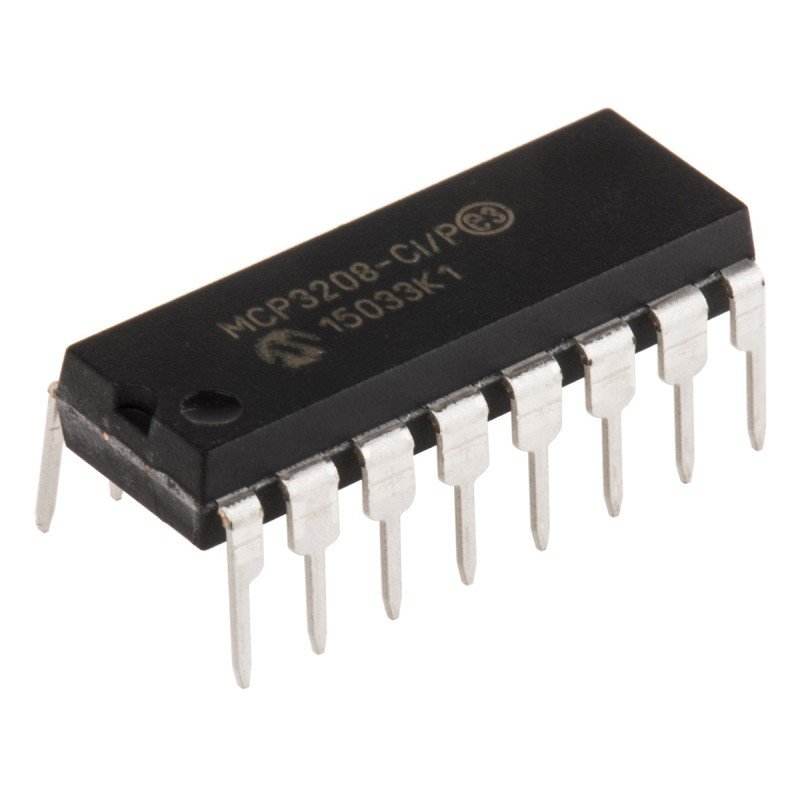

MCP3208 12-Bit 8-Channel A/D Converter (ADC) with SPI Interface IC DIP-16 Package

MCP3208 12-Bit 8-Channel A/D Converter (ADC) with SPI Interface IC DIP-16 Package.MCP3208 devices are successive approximation 12-bit Analogto Digital (A/D) Converters with on-board sample and hold circuitry.  The MCP3208 is programmable to provide four pseudo-differential input pairs or eight single ended inputs. Differential Non linearity (DNL) is specified at ±1 LSB, while Integral Non linearity (INL) is offered in ±1 LSB (MCP3208-B) and ±2 LSB (MCP3208-C) versions. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 100 ksps. The MCP3208 devices operate over a broad voltage range (2.7V – 5.5V). Low current design permits operation with typical standby and active currents of only 500 nA and 320 µA, respectively. The MCP3208 is offered in 16-pin PDIP and SOIC packages.Features:-12-bit resolutionAnalog inputs programmable as single-ended or pseudo-differential pairsOn-chip sample and holdSPI serial interface (modes 0,0 and 1,1)Single supply operation: 2.7V – 5.5V100 ksps max. sampling rate at VDD = 5V50 ksps max. sampling rate at VDD = 2.7VLow power CMOS technology: – 500 nA typical standby current, 2 µA max. – 400 µA max. active current at 5VIndustrial temp range: -40°C to 85°CSpecifications:- ParametersSpecificationVDD7.0VAll Inputs and Outputs w.r.t. VSS-0.6V to VDD 0.6VStorage Temperature-65°C to 150°CAmbient temperature with power applied–65°C to 125°CSoldering temperature of leads (10 seconds) 300°CESD Protection On All Pins (HBM)? 4 Kvmcp3208-ic-datasheet*product image for illustration purposes only. actual product may vary.
