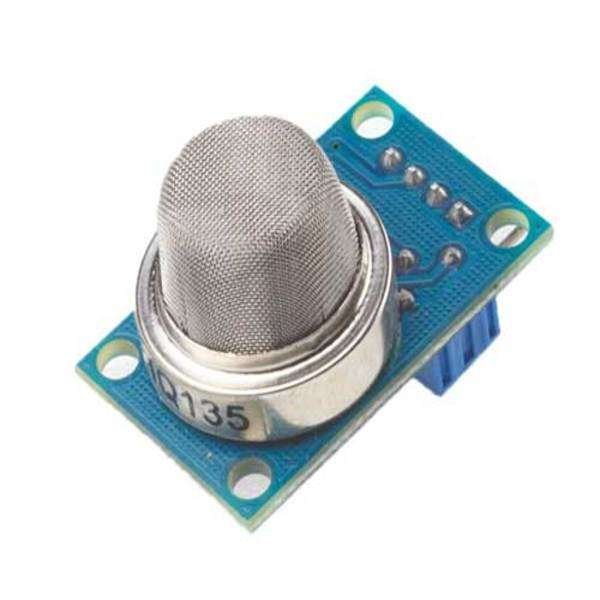

MQ-135 Air Quality Sensor Module

$ 1.43

Categories: , ,
DescriptionMQ-135 Air Quality Sensor ModuleMQ-135 Ammonia Sulfide Benzene Vapor Gas Sensor Module Shield Liquefied Electronic Detector Module For arduino.MQ135 Gas Sensor module for Air Quality having Digital as well as Analog output. Sensitive material of MQ135 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensors conductivity is more higher along with the gas concentration rising. MQ135 gas sensor has high sensitivity to Ammonia, Sulphide and Benze steam, also sensitive to smoke and other harmful gases. It is with low cost and suitable for different application.Used for family, Surrounding environment noxious gas detection device, Apply to ammonia, aromatics, sulfur, benzene vapor, and other harmful gases/smoke, gas detection, tested concentration range: 10 to 1000 ppm.Specifications of MQ135 Gas Sensor Module:-Working voltage:DC 5VWorking Current: 150mADOUT: TTL outputAOUT: Analog outputPreheat time: Over 20sDimension: 32mm x 22m x 27mm(HIGH 27mm)
